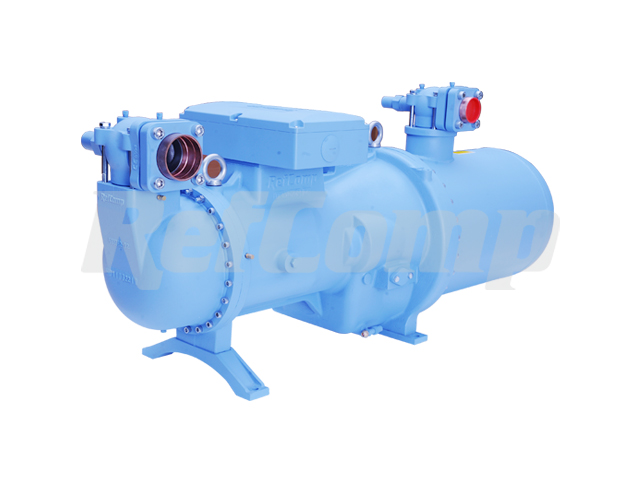

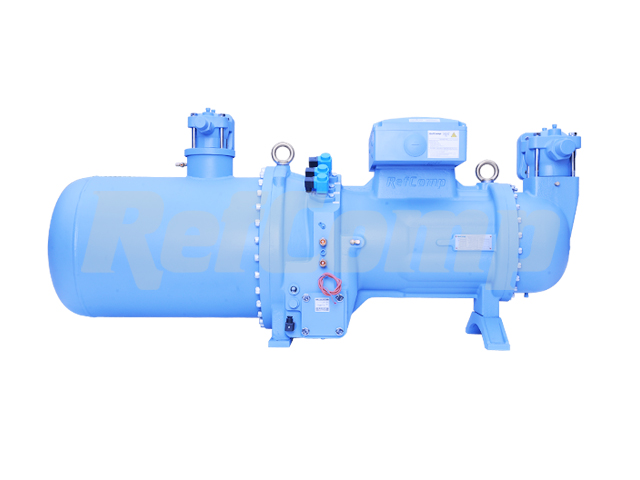

RefComp 134- S series are the refrigeration compressors exclusively for R134a, including 14 models, displacement 270-1100m3/h, nominal power 70- 300HP, compact design, low noise, high efficiency, various models and easy installation. Theycan meet various requirements from manufacturers to make their own high- efficiency, advanced refrigeration or heat pump systems.
● Screw compressors exclusively for R134a. Asymmetricscrew rotor designed by RefComp,tooth profile 5/6,excellent lubrication, perfect meshing between teeth,smooth and quiet operation of the compressor.
●Small size, filter, cut- off valve, and temperature sensorare integrated into the compressor body. Optimizeddesign, less space required.
●Motor protection module provides reliable protectionagainst motor overheating, phase reversal and phaseloss.
●Real- time tracking provides the operation status of themotor and system.
●Multiple duplex bearings are able to avoid rotor axial /radial wear, resulting in high load and low noise.
●Embedded oil separator.
●Multi- step separation, oil efficiency as high as 99.85%.
●Embedded 100μm high- density suction filter, easy toreplace.
●Unique structure and space design, using subcooledrefrigerant gas between suction cut- off valve and theinlet side of the screw to effectively cool down the motor.
●Suction/discharge shut- off valves are able to reverse360° , which is easily installed with flexibility.
●Capacity control with or without step.
